Moving to Derecho from Cheyenne

This page is intended to provide a high-level comparison of Derecho to Cheyenne, particularly for users comfortable with Cheyenne operations and looking for a reference guide for transitioning workflows.

Processes & Procedures for Derecho vs. Cheyenne

  • Allocations: Users must have a project allocation to use Derecho. Derecho CPU and GPU resources are allocated as separate entities.

  • Logging in: ssh is used similarly to access both systems. Please note for Derecho the host name is derecho.hpc.ucar.edu

    ssh access to Derecho vs. Cheyenne

    The fully-qualified domain name (FQDN) for Derecho is derecho.hpc.ucar.edu.

    ssh username@derecho.hpc.ucar.edu

    The fully-qualified domain name (FQDN) for Cheyenne is cheyenne.ucar.edu.

    ssh username@cheyenne.ucar.edu

  • Home and Work file spaces: Derecho and Cheyenne share the work spaces /glade/u/home/${USER} and /glade/work/${USER}. No action is necessary to migrate or synchronize these file spaces.

  • Scratch file space: Users are allocated 30TB data / 12 Million files of scratch quota at /glade/derecho/scratch/${USER}.

    • Moving Files from Cheyenne: Derecho and Cheyenne have distinct scratch files systems. Users may access their Cheyenne scratch contents on Derecho from /glade/cheyenne/scratch/${USER}. No attempt is made to automatically transfer contents between the systems, as scratch storage is intended to be temporary and tied to specific job workflows. (Users interested in duplicating contents between systems on their own may follow instructions here.)

  • Project file space: The Campaign Storage file system is mounted across all of Derecho and Cheyenne, and should be used for shared project storage. The Cheyenne project spaces /glade/p/ and /glade/collections/ are deprecated and are being migrated into /glade/campaign/ as part of the Cheyenne decommissioning process. NCAR Labs are responsible for moving their contents from these deprecated spaces, while migration for active University projects will be performed automatically.

  • Compiling: Derecho maintains the intel compilers as default. Additional compilers are available through the module system, occasionally with different naming conventions.

    In general the compilers on Derecho are much newer than their counterparts on Cheyenne, for example the default version of the GNU Compiler Collection on Derecho is accessible via the gcc/12.2.0 module, whereas Cheyenne's default is gnu/10.1.0.

    Check CPU architecture flags!!

    When recompiling users should pay special attention to any architecture-specific CPU optimization flags. Derecho uses AMD Milan processors, which perform well with code compiled with -march=core-avx2 under Intel and GCC.

    DO use on Derecho: -march=core-avx2

    Be especially careful not to use some other flags commonly used on Cheyenne, as these will create sub-optimal code that will run slower than otherwise possible, or may fail to execute altogether.

    Do NOT use on Derecho: -xHost , -axHost , -xCORE-AVX2 , -axCORE-AVX2

    What's the difference between the intel, intel-oneapi, intel-classic modules?

    Users migrating from Cheyenne and previous Casper deployments may note there are several "flavors" of the Intel compiler available through the module system.

    Intel is currently moving from their "classic" compiler suite to the new "OneAPI" family. During this process both sets of compilers are available, but through different commands under different module selections:

    Module Fortran C C++
    intel-classic ifort icc icpc
    intel-oneapi ifx icx icpx
    intel
    (default)    		 ifort icx icpx

    The intel-classic module makes the familiar ifort/icc/icpc compilers available, however it is expected these will be deprecated during Casper's lifetime. At this stage we expect to keep existing compiler versions available, however there will be no further updates.

    The intel-oneapi module uses the new ifx/icx/icpx compilers.

    The default intel module presently uses the older ifort Fortran compiler along with the newer icx/icpx C/C++ compilers. This choice is intentional as the newer ifx does not reliably match the performance of ifort in all cases. We will continue to monitor the progress of the OneAPI compilers and will change this behavior in the future.

    Users migrating particularly old code bases from Cheyenne may wish to try the intel-classic compilers if intel causes excessive warnings that are not easily resolved. The intel-classic compilers are less stringent with certain standards compliance checks. Note however this is not a permanent solution, as Intel will deprecate the Classic series at some point in Derecho's lifespan.

    • ncarcompilers and linking with libraries: We continue to recommend the use of the ncarcompilers module to facilitate compilation, particularly when using 3rd-party libraries through the module system. One notable change on Derecho is that ncarcompilers no longer assumes which combination of -l<package_libraries> the user desires, necessitating manual selection. For example, to link a simple Fortran application with NetCDF, the process is slightly changed on Derecho vs. Cheyenne:

      ncarcompilers on Derecho requires specifying particular package libraries

      The ncarcompilers module greatly facilitates linking to 3rd party libraries by injecting module-specific linker library search paths into executables. This results in executables that can find their dependencies without relying on environment variables at execution time.

      Compiling a simple Fortran program that uses NetCDF requires specifying which -l<package_libs> are required:

      module load netcdf
ifort -o foo.exe foo.f90 -lnetcdf
      This change allows for broader support of packages that introduce multiple libraries, resolving ambiguity in the users' intent.

      Compiling a simple Fortran program that uses NetCDF on Cheyenne assumes which -l<package_libs> are required, and this detail is hidden from the user:

      module load netcdf
ifort -o foo.exe foo.f90

  • PBS Job Submission: PBS is use to launch jobs on Derecho similar to Cheyenne. Job submission and monitoring via qsub, qstat, qdel etc... are similar between the systems.

    • Queues: On Derecho the default PBS queue main takes the place of the three queues regular, premium, and economy on Cheyenne.

    • Job Priority: On Derecho users request a specific job priority via the #PBS -l job_priority=<regular|premium|economy> resource directive, instead of through distinct queues.

    • select statements for CPU jobs: Derecho CPU nodes have 128 cores. A typical PBS resource selection statement is #PBS -l select=10:ncpus=128:mpiprocs=128:ompthreads=1.

      Update your select statements!

      Derecho CPU nodes have 128 cores, and are generally assigned exclusively. This means you will be charged for all 128 cores on the node, regardless of how many you use. Do not simply copy your old select statements from Cheyenne - doing so will under-utilize the CPU nodes, and you will be charged for the full resource regardless of your usage!

    • Memory: Each CPU node has a maximum of 235GB of RAM available for user jobs. Derecho CPU nodes are all identical - there is no notion of largemem or smallmem CPU nodes. Users requiring more memory per core than the 235GB/128 default configuration allows will need to under-subscribe CPU nodes, that is, leave some cores idle in order to increase the effective memory-per-utilized-core.

  • MPI Environment: Derecho and Cheyenne differ significantly in their default MPI configurations. Derecho uses cray-mpich by default, vs. Cheyenne's Message Passing Toolkit (MPT) implementation.

    • Launching jobs with mpiexec: Derecho uses the mpiexec launcher specified by the MPI standard. (There is no mpiexec_mpt on Derecho.) Additional command-line arguments are required to specify processor layout for mpiexec:

      mpiexec -n <# Total Ranks> -ppn <# Ranks Per Node > ./executable
      see man mpiexec on Derecho for additional details.

    • MPI Environment Variables: Any users leveraging MPT-specific environment variables in their job scripts to change default behavior should first test their application with default configurations to determine if such approaches are still necessary, and if so will need to find cray-mpich equivalents - see man intro_mpi on Derecho or reach out to consulting for assistance.

    • Process binding: Derecho does not use the dmplace or omplace utilities found on Cheyenne for process binding, requiring instead binding selections to be specified through mpiexec. For additional details and examples see Derecho PBS Script Examples and the discussion of the --cpu-bind option in the mpiexec manual page (man mpiexec on Derecho).

  • cron automation: Some users leverage cron on Cheyenne to automate workflows. NCAR/CISL has deployed a new cron service independent of the HPC systems. This separated, high-availability solution allows us to perform maintenance on the HPC resources while not interrupting cron workflows that can tolerate the downtime. Additional details are here.

Going Further

Much more information on Derecho hardware, software, and general user environment can be found in the Introduction to the Derecho Supercomputer training slides, embedded below.

Comparison References

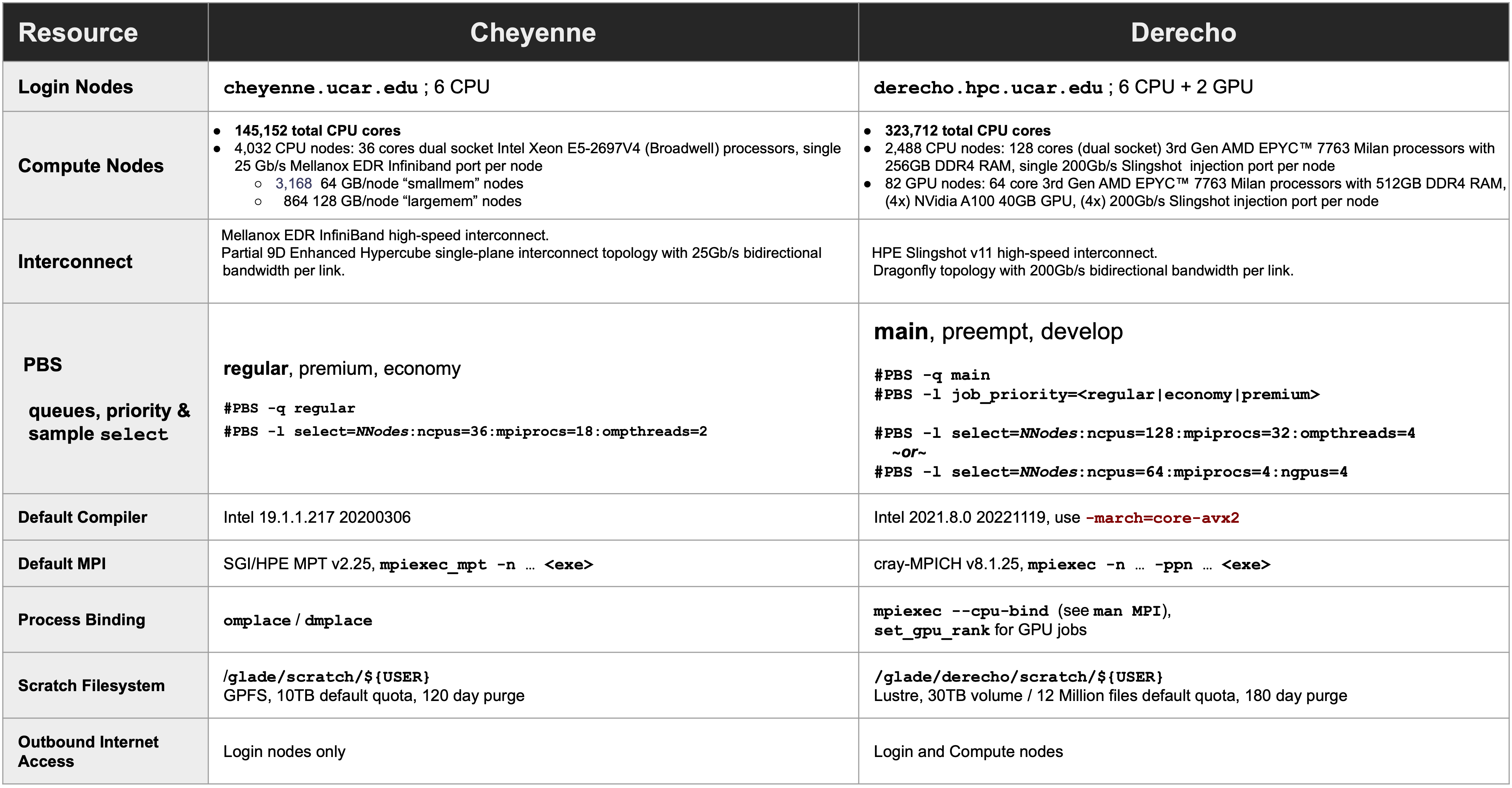

User Environment Comparison

Click on the image below for a detailed comparison of Cheyenne and Derecho key user environment differences.

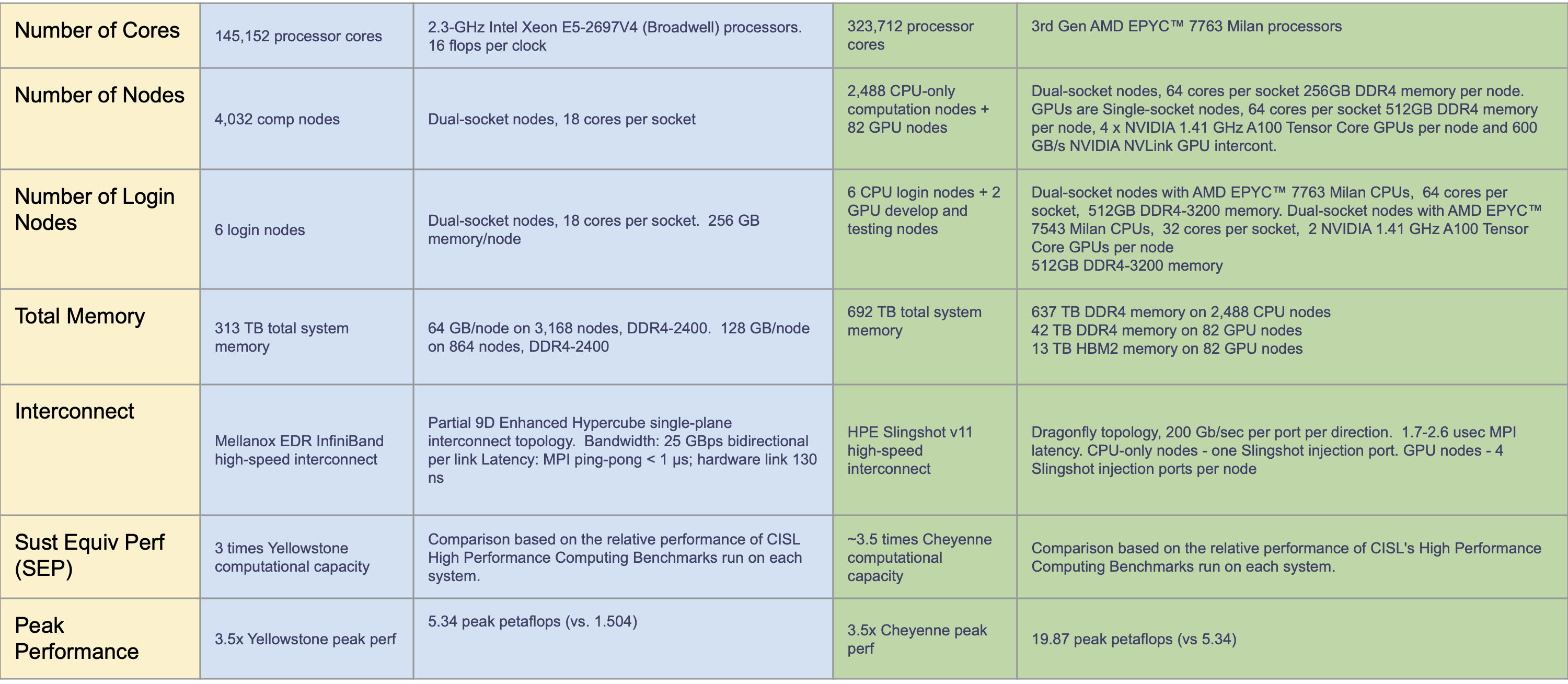

Hardware Comparison
